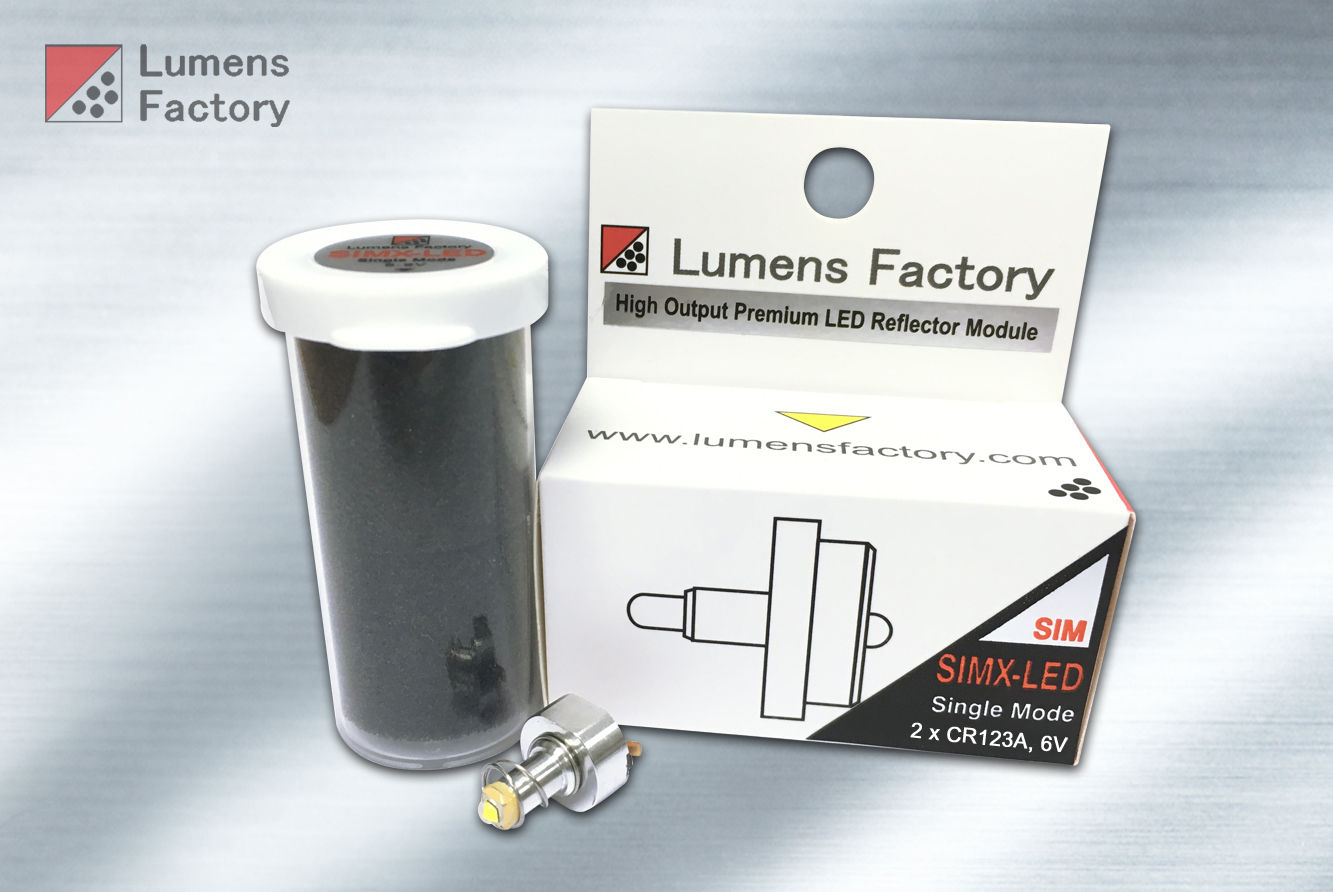

SIMX-LED High Output Single Mode LED Tower Module, Generation 3
(6V-9V Regulated Output)
Generation 2:
Upgraded to Nichia 319A, 5700K LED. Known for their superb pure white tint and high output. Great improvement from the previous Cree XP-G3 version.
Generation 3:
New higher power driver circuit with wider input voltage, now able to use 2 x 3.7V rechargeable battery set ups on models without laser and/or IR units.
-High Output Nichia 319A LED (Max Output 530 Lumens)
-6V-9V Regulated Output
-Maximum Current Output at 1200mA
-Cool White, Cool Colour Temperature (5700K)
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Thermal Protection Warning
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot
-Recoil Dampening Spring
Compatible with:
Insight / Streamlight / EOTech
M3X (Incandescent Model)
M6X (Incandescent Model)
***This LED upgrade module is ONLY compatible with incandescent version of M3X and M6X***
***Do NOT use 3.7V Rechargeable Batteries on models with laser and/or IR units***
AN/PEQ-6A ILLM
AN/PEQ-16
AN/PEQ-16A (Incandescent Version)
LAM-100
LAM-150
LAM-200
LAM-250
LAM-300 (USP)
LAM-350 (USP)
LAM-400 (Mark 23)
LAM-450 (Mark 23)
LAM-1000 (AN/PEQ-14, ILWLP)
LAM-1150
LAM-1200
LAM-1250
LAM-1300 (USP)
LAM-1350 (USP)
LAM-1400 (Mark 23, AN/PEQ-6)
LAM-1450 (Mark 23)
And all models using the Insight/Streamlight/EOtech CFL-120 lamp assembly.
***Do NOT use 3.7V Rechargeable Batteries on models with laser and/or IR units***
***NOT Compatible with M2 UTL, M3, M3-LED, M4, M4-PRO, M5, M6 TLI***
***This LED upgrade module is ONLY compatible with incandescent version of M3X and M6X***
Runtime:
2 x CR123A Primary Cells: ~2 hours
2 x 16340 (RCR 3.7V Rechargeable Cells: ~1.2 hours
***Do NOT use 3.7V Rechargeable Batteries on models with laser and/or IR units***
